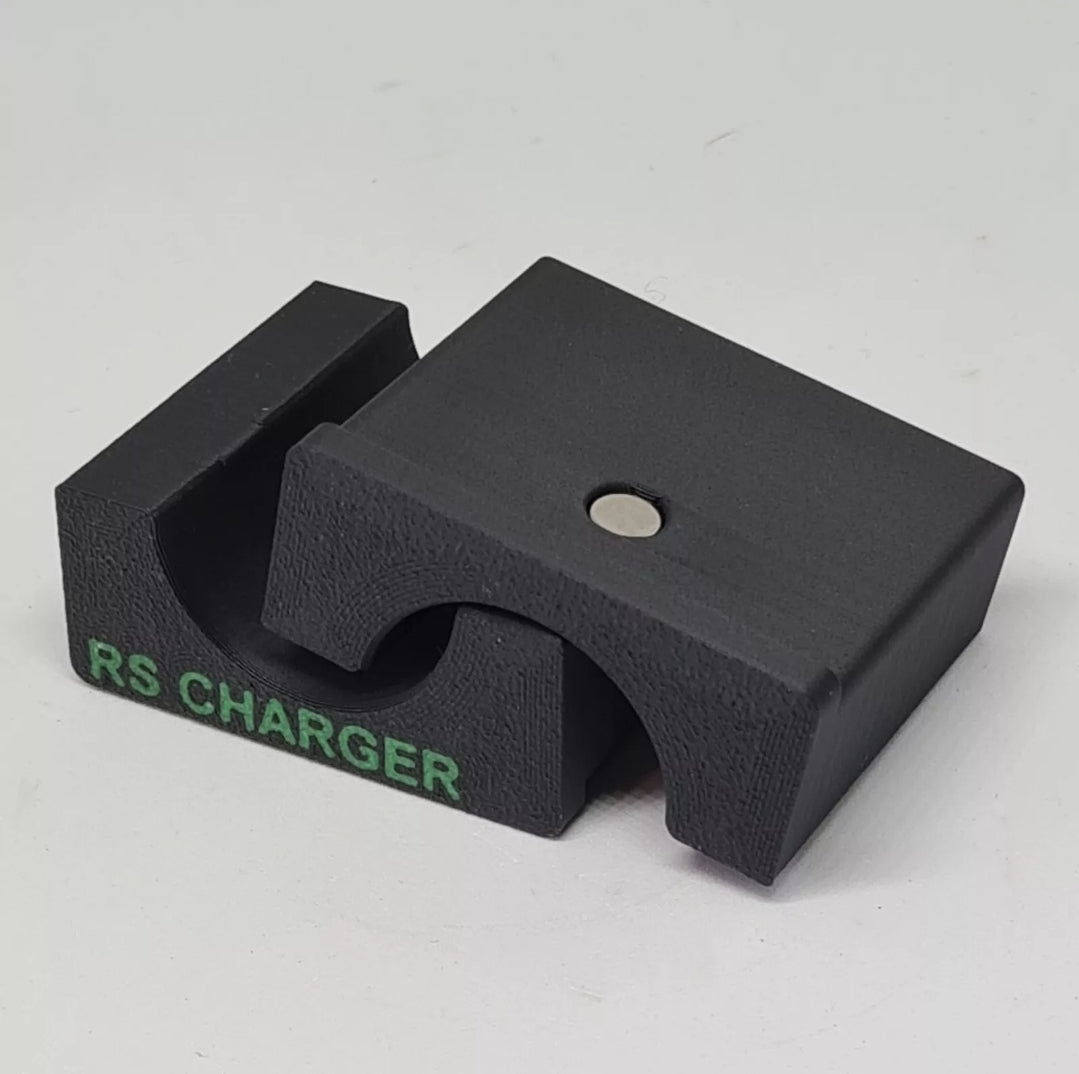

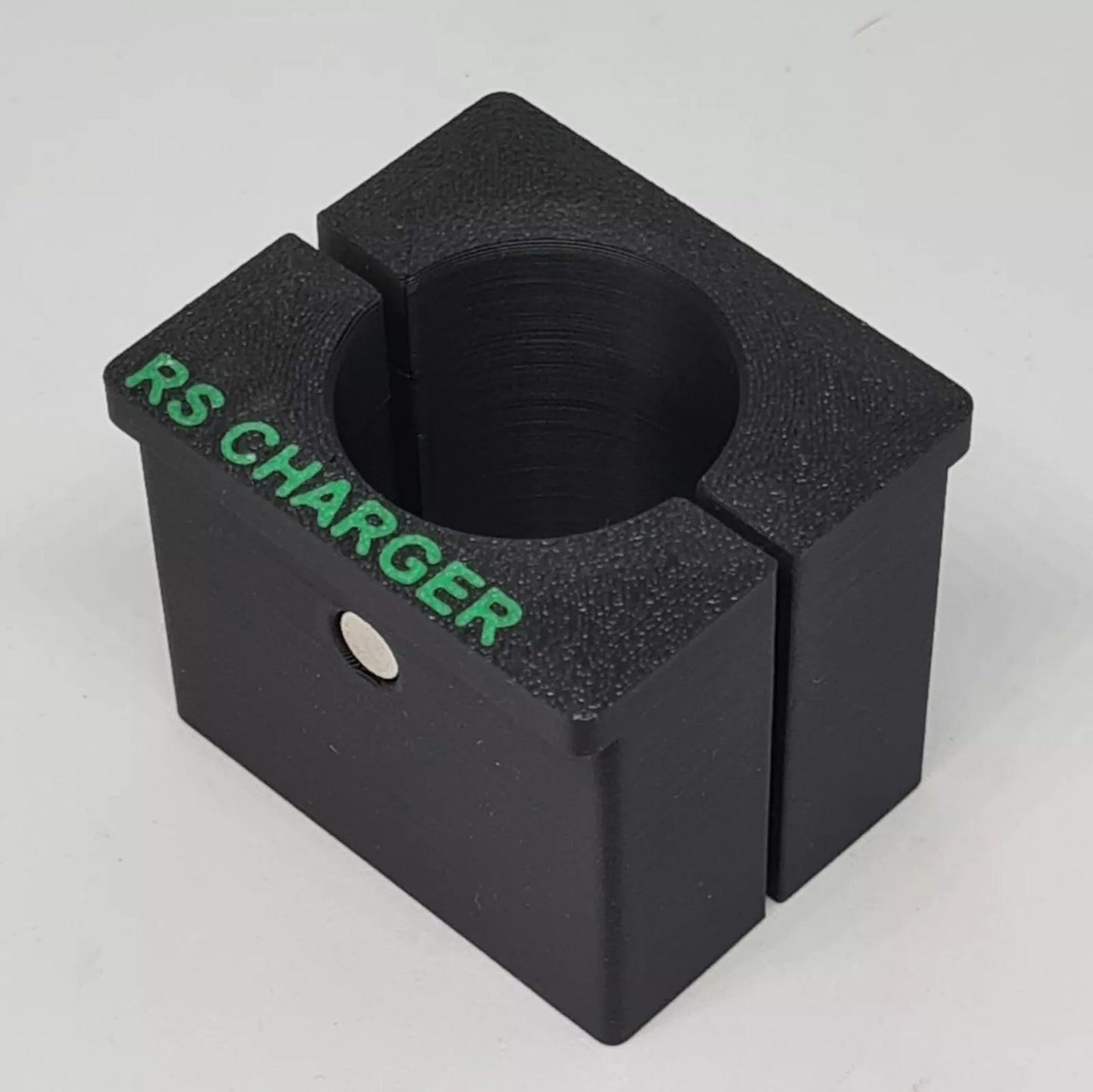

Rockshox Charger Damper Vice Blocks

Silky smooth suspension all the time

Service your suspension at home without the high cost of specialist tools. Our precision vice blocks are capable of resisting max tightening and loosening torques from all fork/shock service manuals. See our torque specs below.

Convenience, durability, performance

• Ultra durable tools made using engineering polymers. Our test processes for vice blocks and seal presses include the ‘max-clamp-force 6-inch bench vice test’ and my favourite, the ‘sledge hammer test’. Our tools will not let you down.
• Service your forks or shock without spending £££ on labour or paying crazy prices for specialist tools.
• Beat the queues at workshops and service your suspension on your own time. A 50hr service can be done in 20 mins and a 200hr service in 1-2 hours.
• Magnets hold the vice blocks in the jaws of your bench vice for ease of use.
• Same day dispatch.

Vice Block Grip Torque Test Data

• 7.5-12mm shaft grip torque = 20Nm
• 12-16mm shaft grip torque = 40Nm
• 16mm and above shaft grip torque = 50Nm+

Example Torque Specs (always refer to your service manual)

• Fox grip damper cartridge = 16.9Nm
• Rockshox Charger Damper top Cap = 9Nm
• Rockshox Super Deluxe Damper shaft main piston nut = 6.8Nm
• Rockshox buttercup housing = 14Nm
• Rockshox Charger rebound steelhead = 14Nm
• Rockshox Charger Damper shaft = 5Nm

Instructions

• Always follow your service manual
• Thoroughly degrease shafts before gripping in vice blocks (using suspension cleaner or IPA)
• Clean faces of vice blocks to ensure no grit or swarf will be trapped
• Use a bench vice - do not use vice blocks with pliers/mole grips etc.
• Start with low clamping force and only increase clamp force enough to meet manufacturer torque specs

Guarantee

• Same day dispatch
• Guaranteed performance if you use it in a bench vice and cant meet the torque specs in your service manual
• Returns and refunds accepted
• Rapid support if you have any issues
